- Part Number
09300100422
- Manufacturer
Harting
- Description

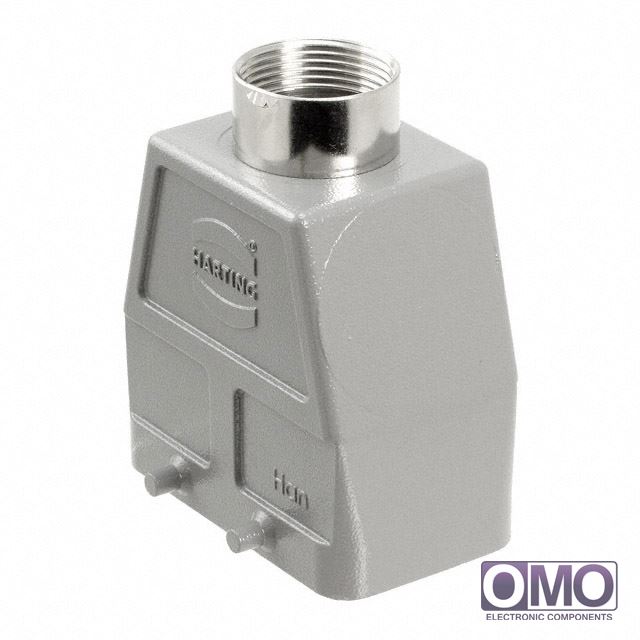

- CONN HOOD TOP ENTRY SZ10B PG21
- Category
- Connectors, Interconnects
- Family
- Heavy Duty Connectors - Housings, Hoods, Bases
- To learn about the specification of 09300100422, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 09300100422 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 09300100422.
- We are offering 09300100422 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 09300100422
| Packaging | Bulk | |
| Connector Type | Hood | |
| Style | Top Entry | |
| Size | 10B | |
| Lock Location | Locking Clip (2) on Base Bottom | |
| Thread Size | PG21 | |
| Size / Dimension | 2.858" L x 1.693" W x 3.425" H (72.60mm x 43.00mm x 87.00mm) | |
| Housing Color | Gray | |
| Features | - | |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | |
| Housing Material | Aluminum, Die Cast | |
| Housing Finish | Powder Coated | |
| Operating Temperature | -40°C ~ 125°C | |
| Other Names | 1195-3463 | |
| call me | [email protected] | |
