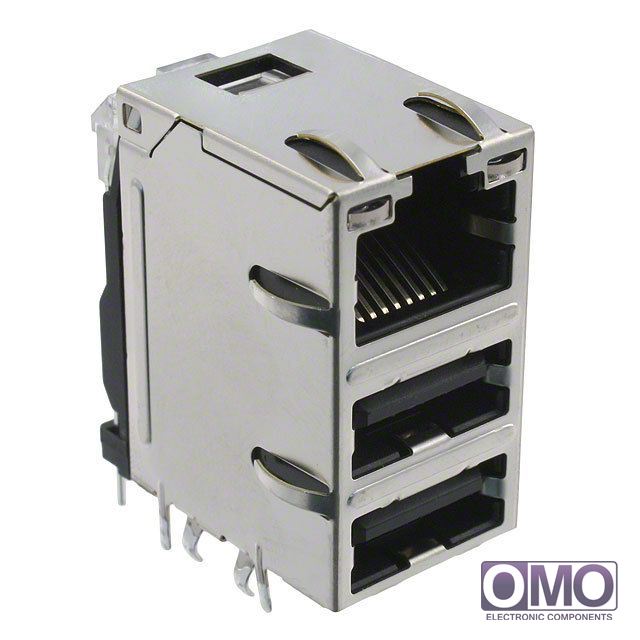

Part Number

08C2-1X1T-36

Manufacturer

Description
CONN MAGJACK 3PORT 100 BASE-T
Category
Connectors, Interconnects
Family
Modular Connectors - Jacks With Magnetics

  • To learn about the specification of 08C2-1X1T-36, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 08C2-1X1T-36 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 08C2-1X1T-36.
  • We are offering 08C2-1X1T-36 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 08C2-1X1T-36
PackagingTray
Connector TypeRJ45 with USB A, Dual
Number of Ports3
Number of Rows3
Applications10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Height Above Board1.170" (29.72mm)
LED ColorGreen, Orange - Yellow
Number of Cores per Jack4
ShieldingShielded, EMI Finger
FeaturesBoard Lock
Tab DirectionUp
Contact Material-
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Shield MaterialCopper Alloy
Housing MaterialPolybutylene Terephthalate (PBT)
Operating Temperature-40°C ~ 85°C
Other Names08C21X1T36
507-1450
