- Part Number
0709282002
- Manufacturer
Molex Connector Corporation
- Description

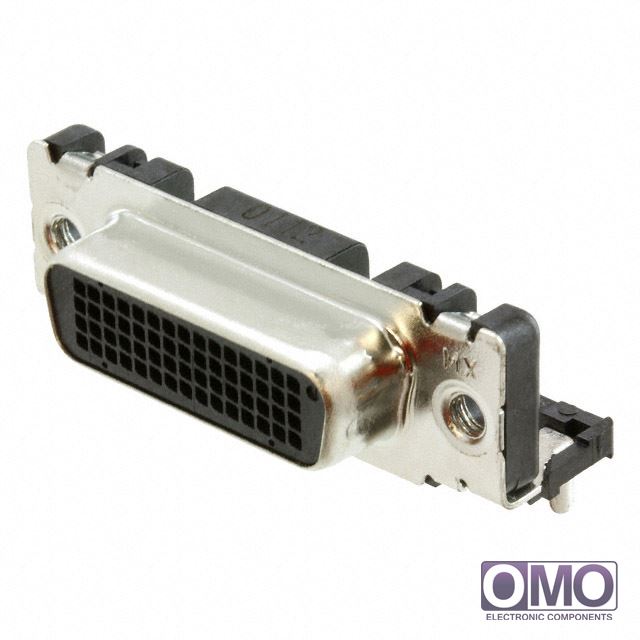

- D-Sub Connector Receptacle, Female Sockets 60 Position Panel Mount, Through Hole, Right Angle Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 0709282002, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 0709282002 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 0709282002.
- We are offering 0709282002 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Tube | |
| Connector Style | D-Type, Board to Board, Matrix | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 60 | |
| Number of Rows | 4 | |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount, Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (M3) | |
| Termination | Solder | |
| Features | Board Lock, Shielded | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Ingress Protection | - | |
| Operating Temperature | -20°C ~ 80°C | |
| Voltage Rating | 40V | |
| Current Rating | 1A | |
| Housing Material | Thermoplastic, Glass Filled | |
| Color | Black | |
| Other Names | 070928-2002 070928-2002-E 0709282002-E 0709282002-ND 70928-2002 70928-2002-E 70928-2002-ND 709282002 709282002-E WM9228 | |
