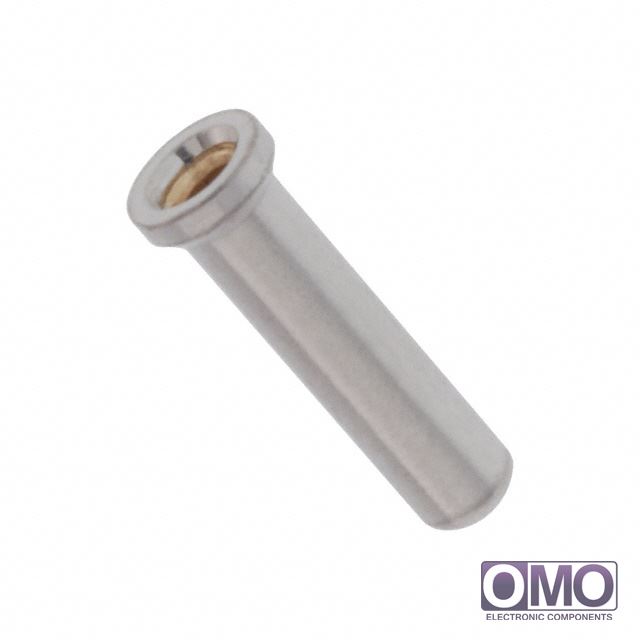

- Part Number
0552-2-15-01-11-27-10-0
- Manufacturer
Mill-Max
- Description
- PIN RCPT .015/.020 DIA 0552-2 SR
- Category
- Connectors, Interconnects
- Family
- Terminals - PC Pin Receptacles, Socket Connectors
- To learn about the specification of 0552-2-15-01-11-27-10-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 0552-2-15-01-11-27-10-0 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 0552-2-15-01-11-27-10-0.
- We are offering 0552-2-15-01-11-27-10-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 0552-2-15-01-11-27-10-0
| Packaging | Bulk | |
| Tail Type | No Tail | |
| Termination | Solder | |
| Length - Overall | 0.170" (4.32mm) | |
| Accepts Pin Diameter | 0.015" ~ 0.020" (0.38mm ~ 0.51mm) | |
| Mounting Hole Diameter | 0.040" (1.02mm) | |
| Pin Hole Diameter | 0.031" (0.79mm) | |
| Flange Diameter | 0.055" (1.40mm) | |
| Tail Diameter | - | |
| Socket Depth | 0.150" (3.81mm) | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Features | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Board Thickness | - | |
| Insertion Force | - | |
| Other Names | 00552215011127100 0552-2-15-01-11-27-1 0552-2-15-01-1127100 0552215011127100 552215011127100 ED5038 | |
| call me | [email protected] | |
