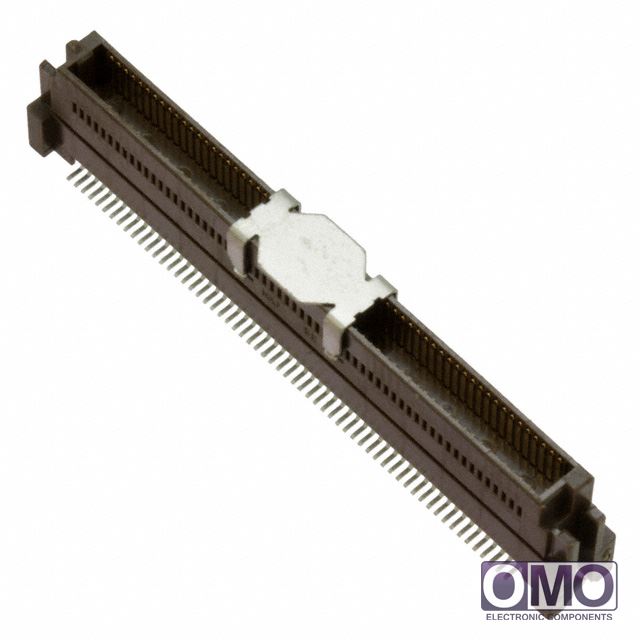

0536271274

View larger image

Part Number

0536271274

Manufacturer

Description
CONN PLUG 120POS VERT DL SMD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of 0536271274, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 0536271274 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 0536271274.
  • We are offering 0536271274 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 0536271274
PackagingTape & Reel (TR)
Connector TypePlug, Outer Shroud Contacts
Number of Positions120
Pitch0.025" (0.64mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide, Solder Retention
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Mated Stacking Heights10mm, 16mm
Height Above Board0.354" (9.00mm)
Other Names053627-1274
53627-1274
536271274
WM7109TR
