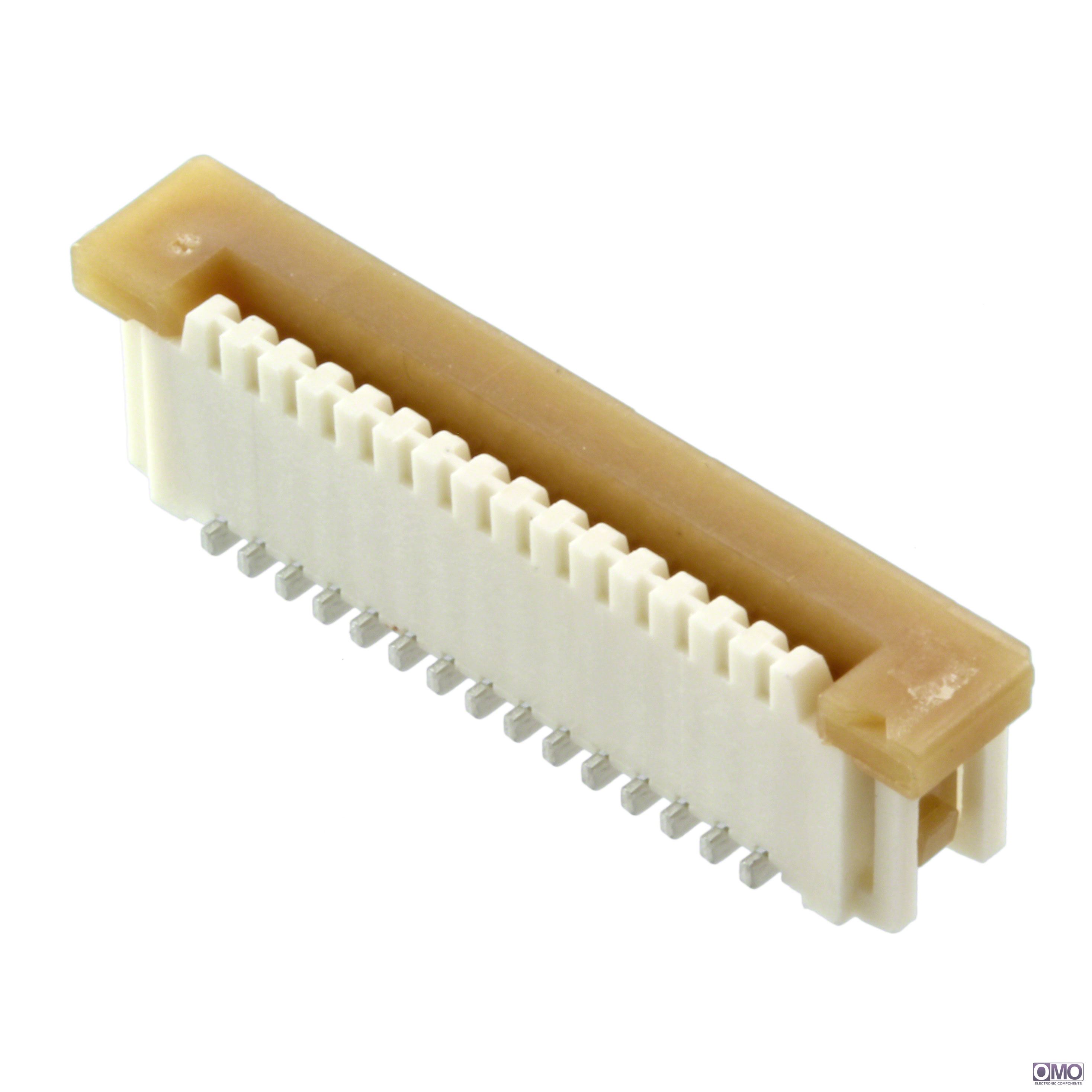

0526101533

View larger image

Part Number

0526101533

Manufacturer

Description
CONN FPC VERT 15POS 1.00MM SMD
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
  • To learn about the specification of 0526101533, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 0526101533 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 0526101533.
  • We are offering 0526101533 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 0526101533
PackagingTape & Reel (TR)
Flat Flex TypeFPC
Mounting TypeSurface Mount
Connector/Contact TypeContacts, Vertical, 1 Sided
Number of Positions15
Pitch0.039" (1.00mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.226" (5.74mm)
Locking FeatureSlide Lock
Cable End TypeTapered
Contact MaterialPhosphor Bronze
Contact FinishTin Bismuth
Housing MaterialPolyamide (PA), Nylon, Glass Filled
Actuator MaterialPolyphenylene Sulfide (PPS), Glass Filled
FeaturesZero Insertion Force (ZIF)
Voltage Rating125V
Operating Temperature-40°C ~ 85°C
Material Flammability RatingUL94 V-0
Current Rating1A
Other Names0052610-1533
052610-1533
0526101533-ND
52610-1533
526101533
WM11007TR
