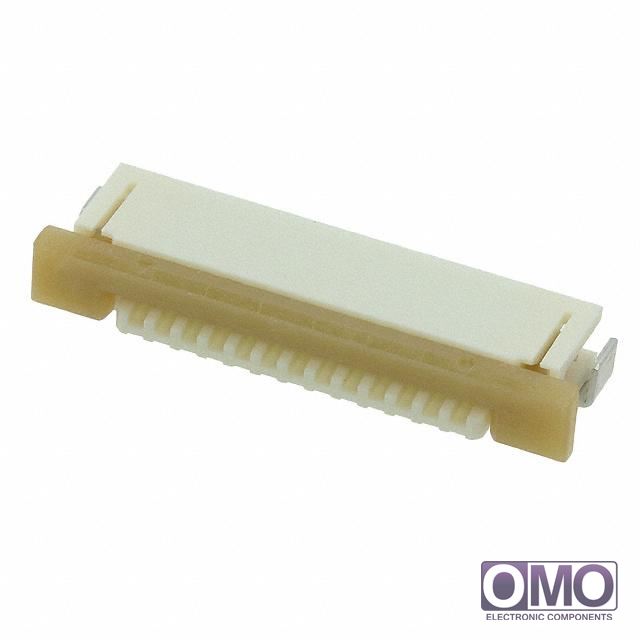

0522711379

To learn about the specification of 0522711379, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 0522711379 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 0522711379.
We are offering 0522711379 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 0522711379

Packaging	Tape & Reel (TR)
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	13
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.118" (3.00mm)
Locking Feature	Slide Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Tin Bismuth
Housing Material	Polyamide (PA46), Nylon 4/6
Actuator Material	Polyphenylene Sulfide (PPS)
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Operating Temperature	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Other Names	052271-1379 52271-1379 52271-1379-ND 522711379 Q4552665AAB WM11125TR
