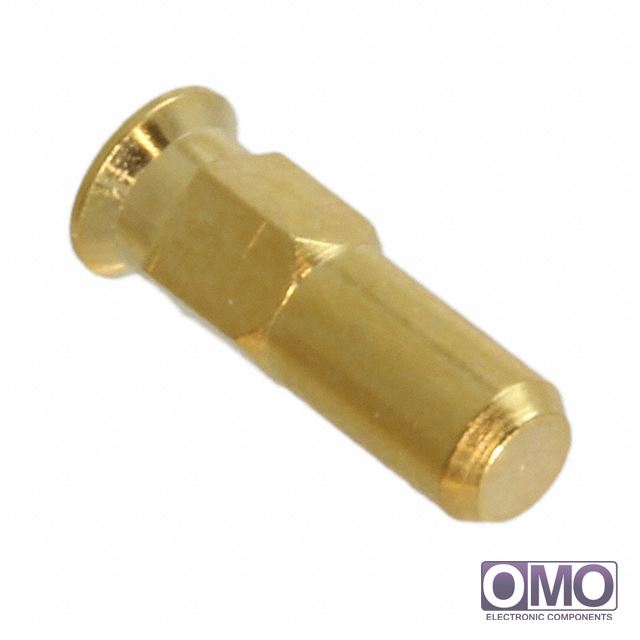

0354-0-15-15-02-27-10-0

View larger image

Part Number

0354-0-15-15-02-27-10-0

Manufacturer

Description
PIN RECPT .040/.050 DIA 0354 SER
Category
Connectors, Interconnects
Family
Terminals - PC Pin Receptacles, Socket Connectors
  • To learn about the specification of 0354-0-15-15-02-27-10-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 0354-0-15-15-02-27-10-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 0354-0-15-15-02-27-10-0.
  • We are offering 0354-0-15-15-02-27-10-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 0354-0-15-15-02-27-10-0
PackagingBulk
Tail TypeNo Tail
TerminationPress-Fit, Hex
Length - Overall0.290" (7.37mm)
Accepts Pin Diameter0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Mounting Hole Diameter0.104" (2.64mm)
Pin Hole Diameter0.068" (1.73mm)
Flange Diameter0.119" (3.02mm)
Tail Diameter-
Socket Depth0.260" (6.60mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Features-
Operating Temperature-55°C ~ 125°C
Board Thickness-
Insertion Force-
Other Names3.54015E+14
ED90086
