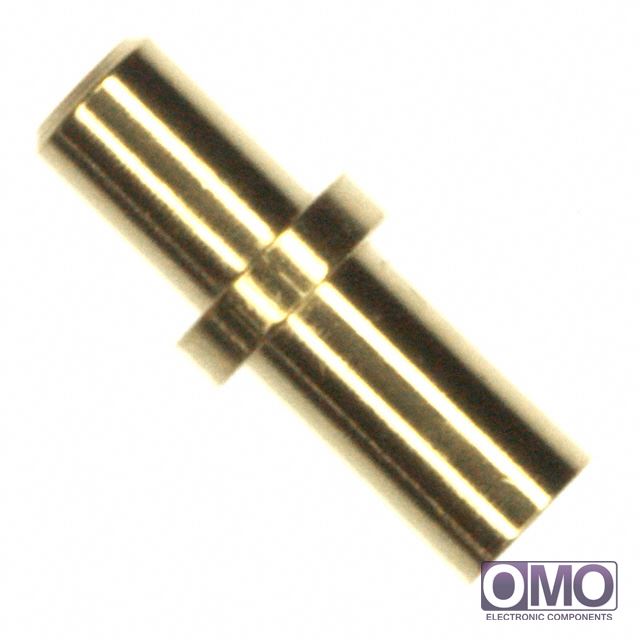

0322-0-15-15-34-27-10-0

View larger image

Part Number

0322-0-15-15-34-27-10-0

Manufacturer

Description
PIN RECPT .032/.046 DIA 0322 SER
Category
Connectors, Interconnects
Family
Terminals - PC Pin Receptacles, Socket Connectors
  • To learn about the specification of 0322-0-15-15-34-27-10-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 0322-0-15-15-34-27-10-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 0322-0-15-15-34-27-10-0.
  • We are offering 0322-0-15-15-34-27-10-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 0322-0-15-15-34-27-10-0
PackagingBulk
Tail TypeNo Tail
TerminationSolder
Length - Overall0.317" (8.05mm)
Accepts Pin Diameter0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Mounting Hole Diameter0.089" (2.26mm)
Pin Hole Diameter0.064" (1.63mm)
Flange Diameter0.125" (3.18mm)
Tail Diameter-
Socket Depth0.220" (5.59mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Features-
Operating Temperature-55°C ~ 125°C
Board Thickness-
Insertion Force-
Other Names00322015153427100
0322-015153427100
0322015153427100
322015153427100
ED90079
