0316-0-15-15-34-27-10-0

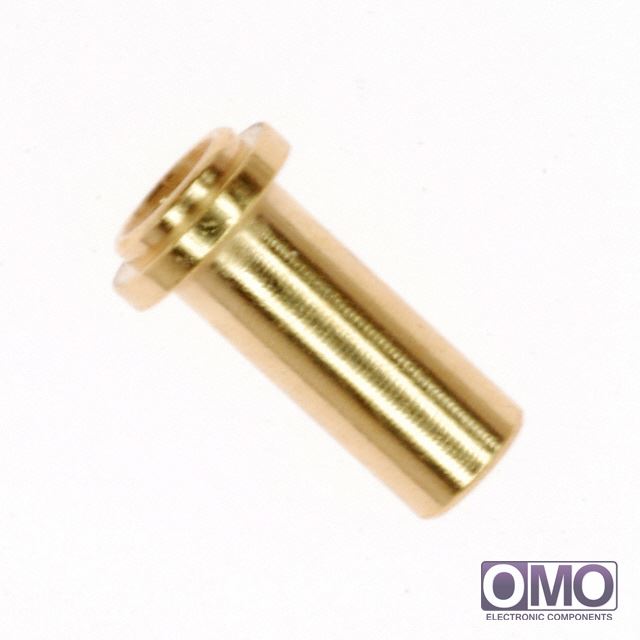

View larger image

Part Number

0316-0-15-15-34-27-10-0

Manufacturer

Description
PIN RECPT .032/.046 DIA 0316 SER
Category
Connectors, Interconnects
Family
Terminals - PC Pin Receptacles, Socket Connectors
  • To learn about the specification of 0316-0-15-15-34-27-10-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 0316-0-15-15-34-27-10-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 0316-0-15-15-34-27-10-0.
  • We are offering 0316-0-15-15-34-27-10-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 0316-0-15-15-34-27-10-0
PackagingBulk
Tail TypeNo Tail
TerminationSolder
Length - Overall0.236" (6.00mm)
Accepts Pin Diameter0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Mounting Hole Diameter0.087" (2.21mm)
Pin Hole Diameter0.064" (1.63mm)
Flange Diameter0.126" (3.20mm)
Tail Diameter-
Socket Depth0.195" (4.95mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Features-
Operating Temperature-55°C ~ 125°C
Board Thickness-
Insertion Force-
Other Names00316015153427100
0316-015153427100
0316-015153427100-ND
0316015153427100
316015153427100
ED90077
