0305-2-15-15-47-27-10-0

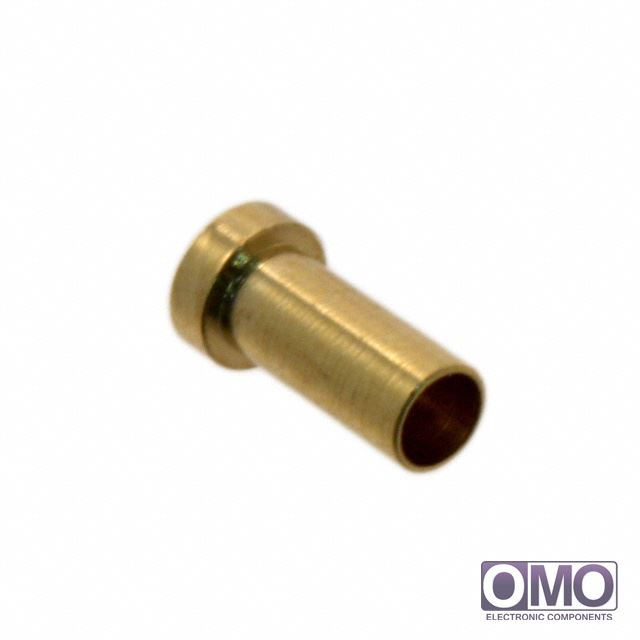

View larger image

Part Number

0305-2-15-15-47-27-10-0

Manufacturer

Description
CONN RCPT PIN .025-.037" SOLDER
Category
Connectors, Interconnects
Family
Terminals - PC Pin Receptacles, Socket Connectors
  • To learn about the specification of 0305-2-15-15-47-27-10-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 0305-2-15-15-47-27-10-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 0305-2-15-15-47-27-10-0.
  • We are offering 0305-2-15-15-47-27-10-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 0305-2-15-15-47-27-10-0
PackagingBulk
Tail TypeNo Tail
TerminationSolder
Length - Overall0.155" (3.94mm)
Accepts Pin Diameter0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Mounting Hole Diameter0.061" (1.55mm)
Pin Hole Diameter0.051" (1.30mm)
Flange Diameter0.076" (1.93mm)
Tail Diameter-
Socket Depth0.155" (3.94mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Features-
Operating Temperature-55°C ~ 125°C
Board Thickness-
Insertion Force-
Other Names0305215154727100
3.05215E+14
ED90333
