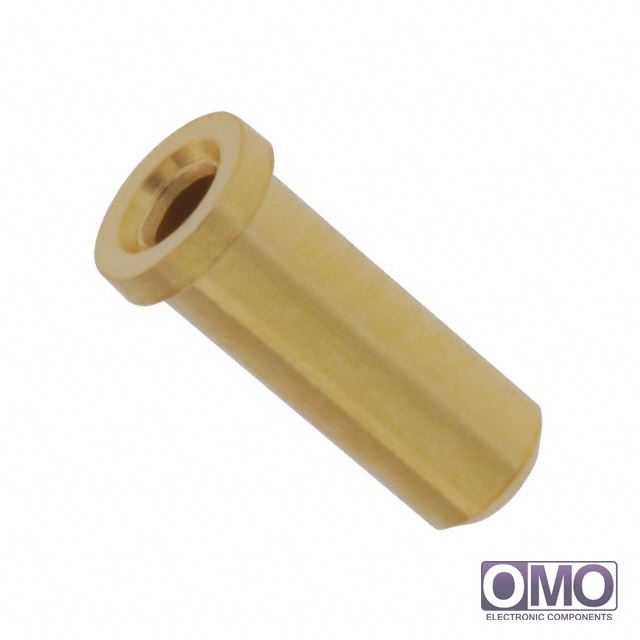

0294-0-15-15-06-27-10-0

View larger image

Part Number

0294-0-15-15-06-27-10-0

Manufacturer

Description
PIN RECPT .022/.032 DIA 0294 SER
Category
Connectors, Interconnects
Family
Terminals - PC Pin Receptacles, Socket Connectors
  • To learn about the specification of 0294-0-15-15-06-27-10-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 0294-0-15-15-06-27-10-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 0294-0-15-15-06-27-10-0.
  • We are offering 0294-0-15-15-06-27-10-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 0294-0-15-15-06-27-10-0
PackagingBulk
Tail TypeNo Tail
TerminationSolder
Length - Overall0.206" (5.23mm)
Accepts Pin Diameter0.022" ~ 0.032" (0.56mm ~ 0.81mm)
Mounting Hole Diameter0.076" (1.93mm)
Pin Hole Diameter0.051" (1.30mm)
Flange Diameter0.090" (2.29mm)
Tail Diameter-
Socket Depth0.185" (4.70mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Features-
Operating Temperature-55°C ~ 125°C
Board Thickness-
Insertion Force-
Other Names00294015150627100
294015150627100
ED90072
