- Part Number
0015922251
- Manufacturer
Molex Connector Corporation
- Description

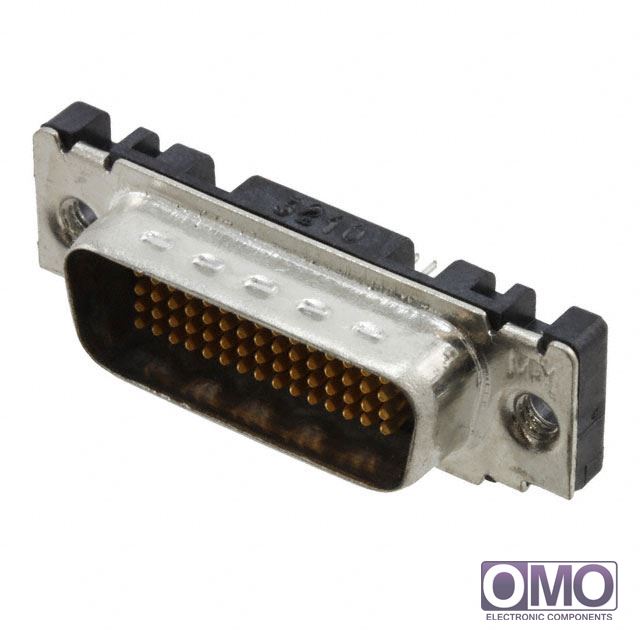

- D-Sub Connector Plug, Male Pins 60 Position Panel Mount, Through Hole Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 0015922251, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 0015922251 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 0015922251.
- We are offering 0015922251 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Tube | |
| Connector Style | D-Type, Board to Board, Matrix | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 60 | |
| Number of Rows | 4 | |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount, Through Hole | |
| Flange Feature | Housing/Shell (M3) | |
| Termination | Solder | |
| Features | Grounding Indents, Shielded | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Ingress Protection | - | |
| Operating Temperature | -20°C ~ 80°C | |
| Voltage Rating | 40V | |
| Current Rating | 1A | |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | |
| Color | Black | |
| Other Names | 0015-92-2251 0015-92-2251-E 0015922251-E 0015922251-ND 15-92-2251 15-92-2251-E 15-92-2251-ND 15922251 15922251-E 709291001 A-70929-1001 SDA-70929-1001 WM9135 | |
